4000 5000 8000 12000lbs 12v 24v Offroad 4×4 SUV Electric Winch Lifting Equipment Hoist Winch

Category:
Description

Heavy-Duty Electric Winch for Off-Road Vehicles & Trucks

Product Overview

Engineered for the most demanding recoveries, our 12V/24V Electric Winch delivers unstoppable pulling power when you need it most. Whether you are navigating deep mud, rocky terrains, or steep inclines, this winch combines rugged durability, lightning-fast line speeds, and weather-sealed reliability to get your vehicle out of trouble safely.

Key Features & Benefits

  • Unmatched Pulling Power: Powered by a high-output series-wound motor paired with a robust 3-stage planetary gear system, ensuring maximum torque and smooth operation under heavy loads.

  • IP67 Waterproof Rating: Fully sealed construction keeps water, mud, and dust out of the motor and gearbox, guaranteeing top-tier performance in extreme weather conditions.

  • Advanced Automatic Load-Holding Brake: Designed for maximum safety, the automatic mechanical brake holds the full load without slipping, giving you total control during winching operations.

  • Synthetic Rope or Steel Cable Options:

    • Ultra-tough Synthetic Rope: Lightweight, floats on water, does not store kinetic energy (safer if snapped), and easy to handle.

    • Heavy-Duty Galvanized Steel Cable: Abrasion-resistant and built for ultimate durability in harsh industrial or rocky environments.

  • Dual Remote Control System: Includes both a heavy-duty waterproof wired handheld remote (with a 3.7m cord) and a wireless remote control for safe operation from a distance.

Technical Specifications

Feature Specification
Rated Line Pull 4000 lbs / 8000 lbs / 13,500 lbs (Available in multiple capacities)
Motor 6.6 HP / 4.8 kW (12V or 24V Series Wound)
Gear Train 3-Stage Planetary
Gear Reduction Ratio 265:1
Braking Action Automatic In-The-Drum
Cable / Rope Dimensions Diameter: 9.5 mm / Length: 24 meters
Fairlead Aluminum Hawse (for synthetic rope) / Roller Fairlead (for steel cable)
Overall Dimensions 546 mm × 160 mm × 218 mm
Mounting Bolt Pattern 254 mm × 114.3 mm (Standard 4-bolt pattern)
Net Weight 28 kg (Synthetic) / 36 kg (Steel)

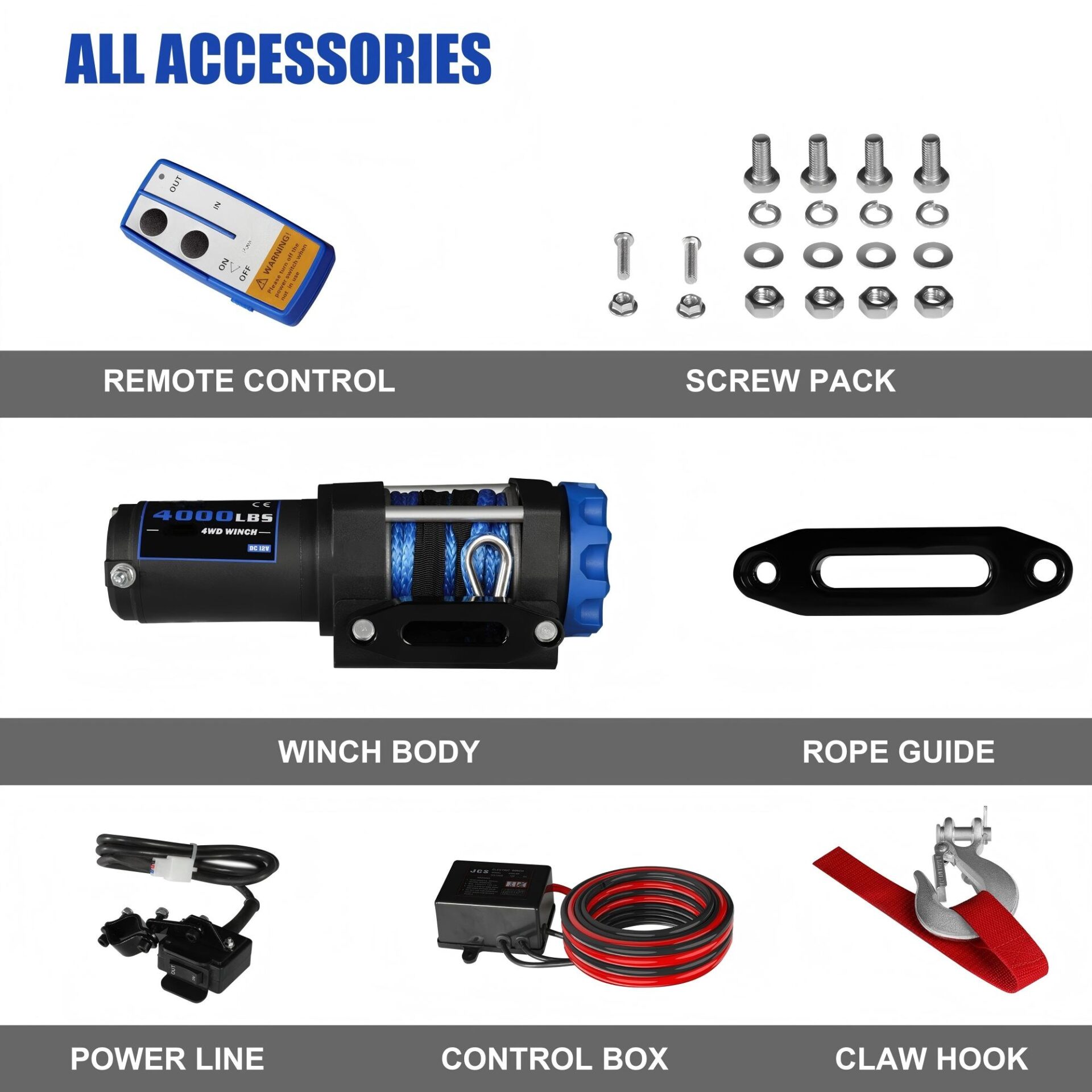

What’s in the Box?

  • 1 x Electric Winch (Pre-wound with rope or cable)

  • 1 x Heavy-Duty Control Box (Solenoid)

  • 1 x Wireless Remote Control

  • 1 x Wired Handheld Remote Control

  • 1 x Fairlead (Hawse or Roller)

  • 1 x Forged Hook with Safety Latch

  • 1 x Mounting Plate & Hardware Kit

  • 1 x Comprehensive User Manual
